MDEV-GG2 Electric Vehicle - Technical Specifications

1. General Parameters

• Dimensions: 2500 × 1330 × 1900 mm

• Passenger Capacity: 2

• Max Speed: 40 km/h (25 mph)

• Range: 80–100 km

• Gradeability: 30% slope

• Turning Radius: ≤3.8 m (compact maneuverability)

• Ground Clearance: ±125 mm (suitable for urban and light off-road use)

• Braking Distance: ≥4 m (disc brakes with EMB system)

• Wheelbase: 1700 mm

• Track Width (Front/Rear): 950 × 950 mm

• Curb Weight: 500 kg

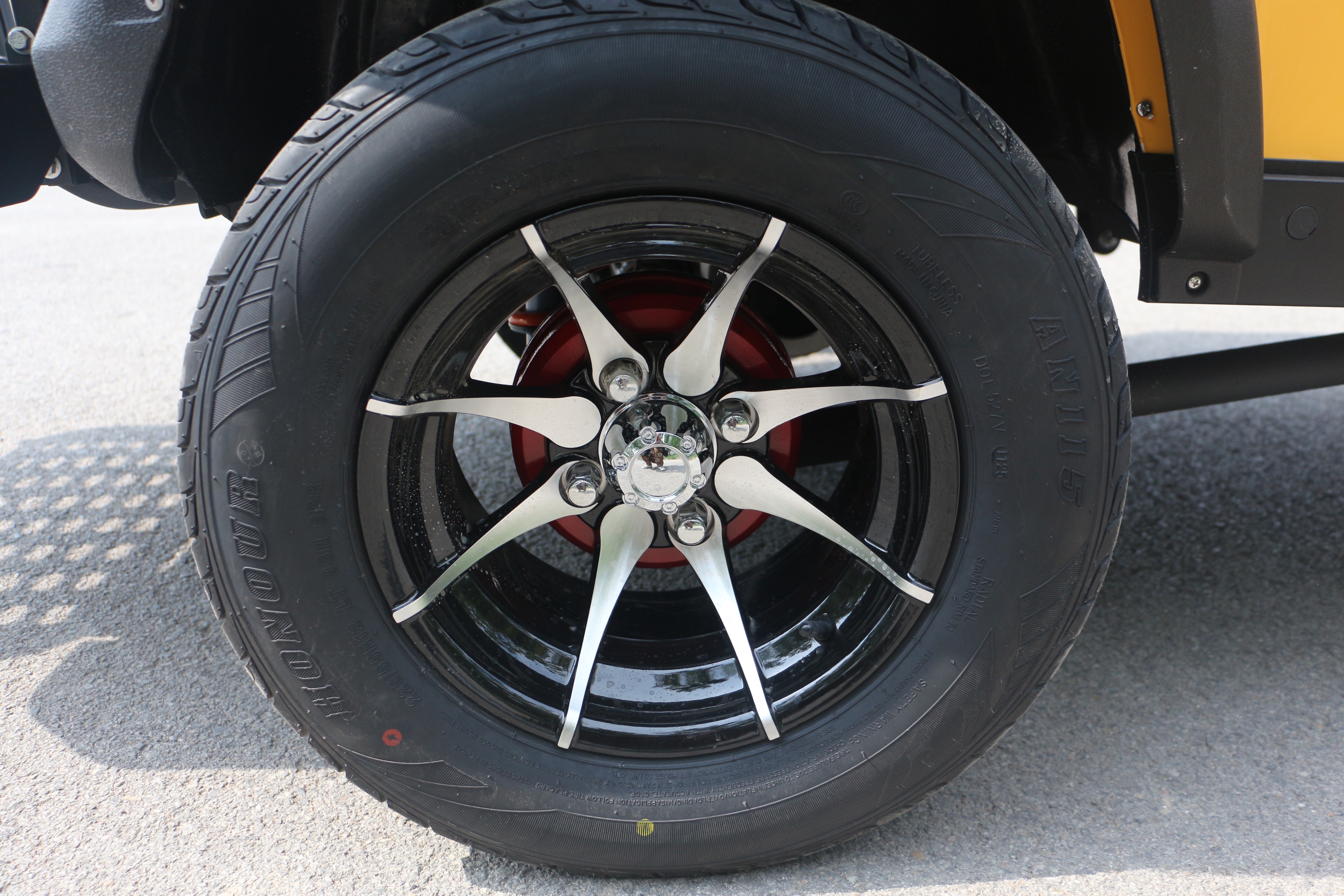

• Tires: 14-inch road tires with aluminum alloy wheels

2. Powertrain & Electrical System

• Motor: 48V AC, 50W

• Controller: 48V, 350–400A

• Battery: Lead-acid (150Ah, 8×6V configuration)

• Charger: Intelligent high-frequency charger

• Charging Time: 6–8 hours

3. Chassis & Control

• Braking System: Front/Rear disc brakes + EMB (Electro-Mechanical Braking)

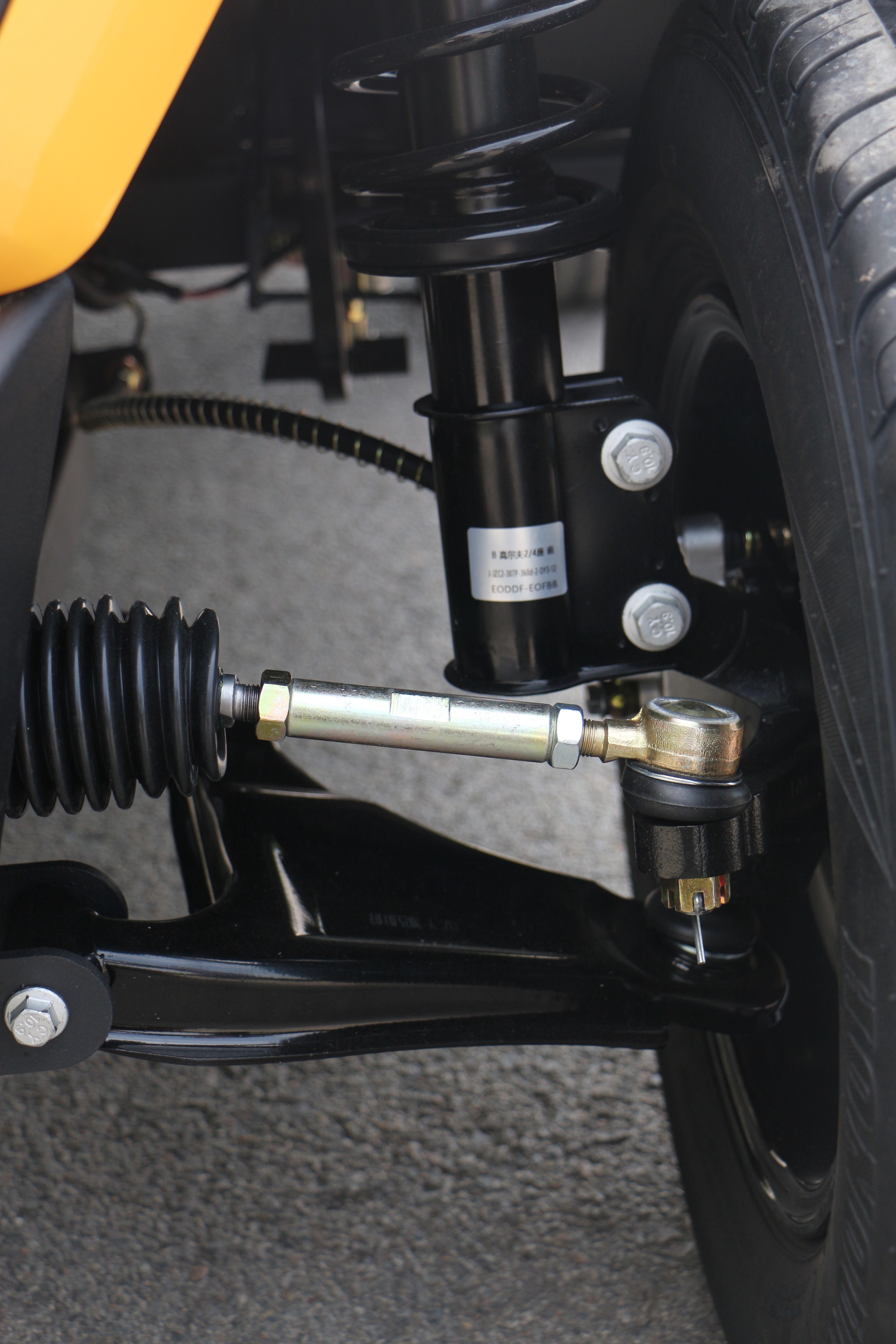

• Front Suspension: Independent suspension

• Rear Suspension: Torsion beam

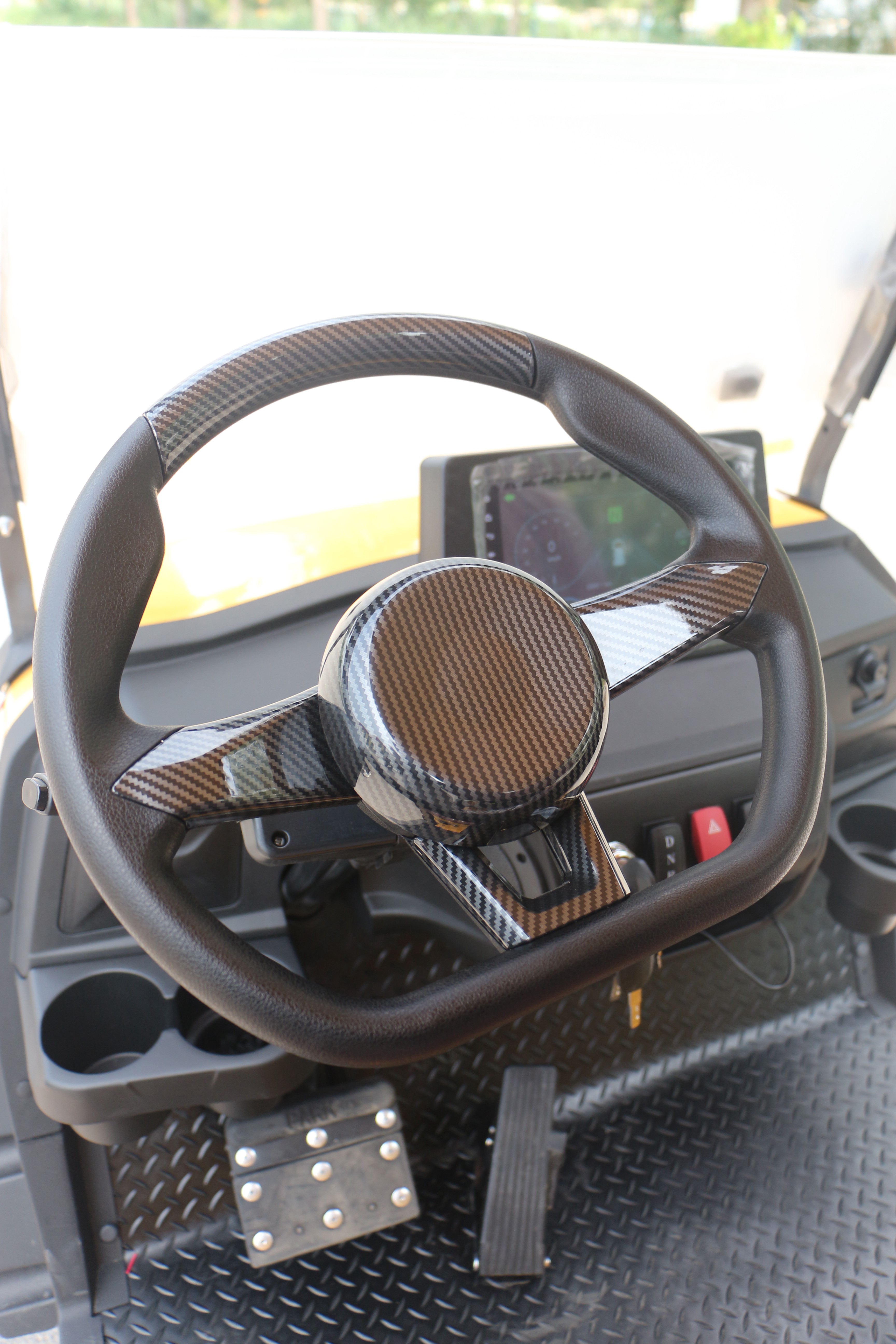

• Steering: Rack & Pinion (precise handling)

4. Exterior & Features

• Display: LCD instrument panel (shows speed, range, battery level, and trip data)

• Lighting: LED headlights and taillights (energy-efficient visibility)

• Seats: High-resilience PU leather with bus-grade cold foam cushioning

• Body Construction: Steel frame + ABS engineering plastic panels (durable yet lightweight)

Key Advantages

✔ Compact & Agile: Ideal for urban commuting with a tight turning radius.
✔ Efficient Powertrain: Reliable 48V system with 80–100 km range.
✔ Safety Focused: Disc brakes + EMB for responsive stopping power.
✔ Comfort-Optimized: Ergonomic seating and smooth suspension.

Target Use Cases:

• Gated communities, resorts, and campus transport

• Short-distance urban mobility

• Security patrol or utility vehicles

Custom configurations available upon request.
