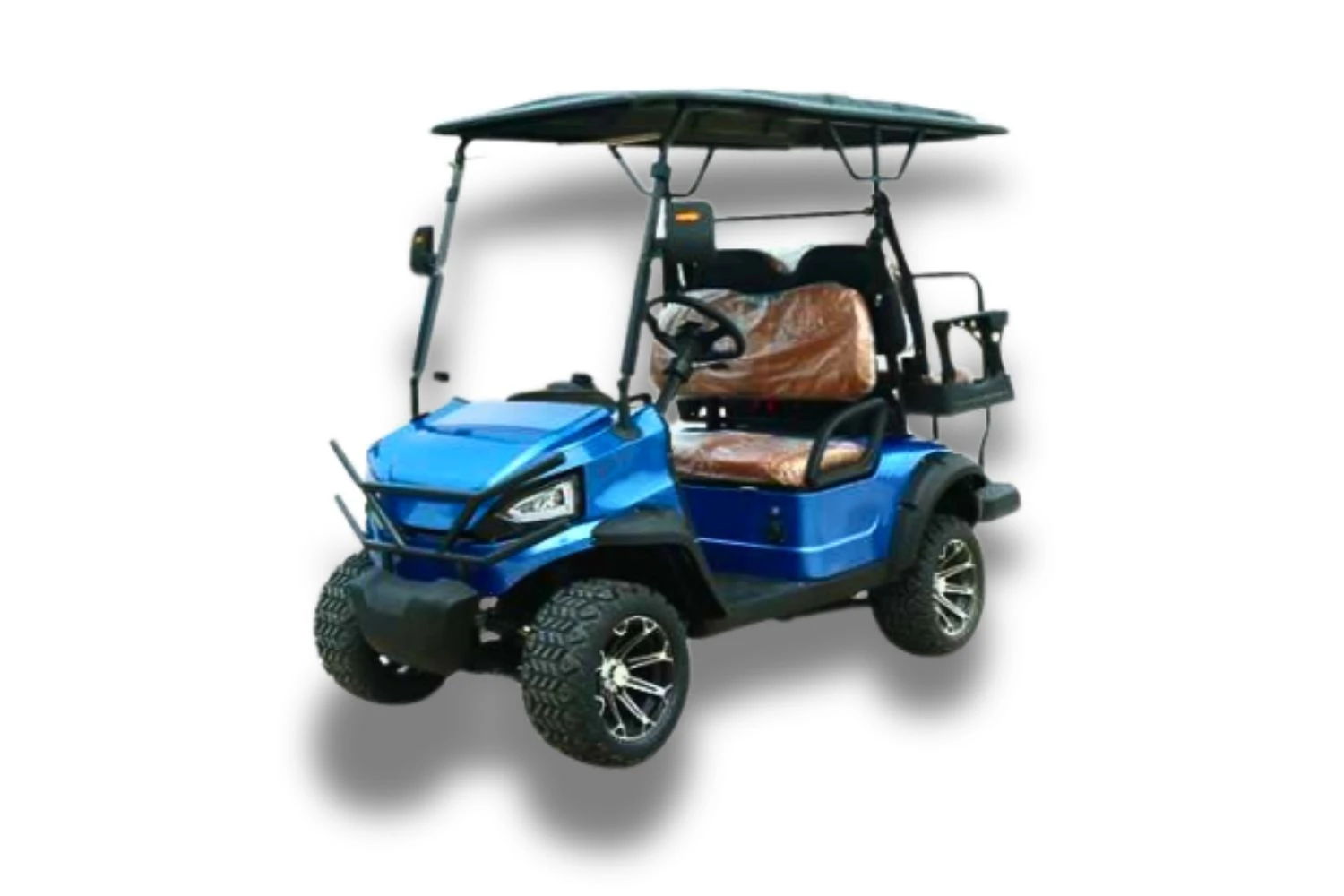

MDEV-GGL22 Electric Utility Vehicle

Robust Performance for Commercial & Recreational Use

1. Key Specifications

• Dimensions: 3010 × 1330 × 2000 mm

• Passenger Capacity: 4

• Max Speed: 40 km/h (25 mph) *(Note: Corrected from "40mm/s")*

• Range: 80–100 km per charge

• Gradeability: 30% slope

• Turning Radius: ≤3.8 m

• Ground Clearance: 125 mm

• Braking Distance: ≤4 m (disc brakes + EMB system)

• Weight: 600 kg

• Tires: 12-inch off-road tires with aluminum wheels

2. Powertrain & Electrical

• Motor: 48V AC, 5 kW (High-torque for off-road use)

• Battery: Lead-acid (150Ah, 6×8V configuration)

• Charging: 8–9 hours *(Corrected from "€-9 hours")*

3. Chassis & Control

• Suspension:

  • Front: Independent suspension

  • Rear: Torsion beam (Corrected from "Torsten beam")

• Steering: Rack & Pinion (Corrected from "Back & Piston")

4. Features

• Display: LCD dashboard (speed, range, battery level)

• Lighting: LED headlights/taillights

• Seats: High-resilience PU leather (Corrected from "RJ leather")

• Body: Steel frame + ABS plastic

Why Choose MDEV-GGL22?

✓ Dual-Purpose: Handles both urban and off-road terrain
✓ Heavy-Duty: 5kW motor for challenging slopes
✓ Safety: Short braking distance + EMB system
✓ Comfort: Optimized suspension and seating

Ideal for:

• Resort/campus transport

• Farm/industrial sites

• Security patrols

Contact us for customization options.

Notes:

1. Corrected apparent OCR errors in dimensions ("200.0mm" → 2000mm), battery type ("Load acid" → Lead-acid), etc.

2. Standardized units (e.g., km/h instead of mm/s).

3. Added practical use cases.
