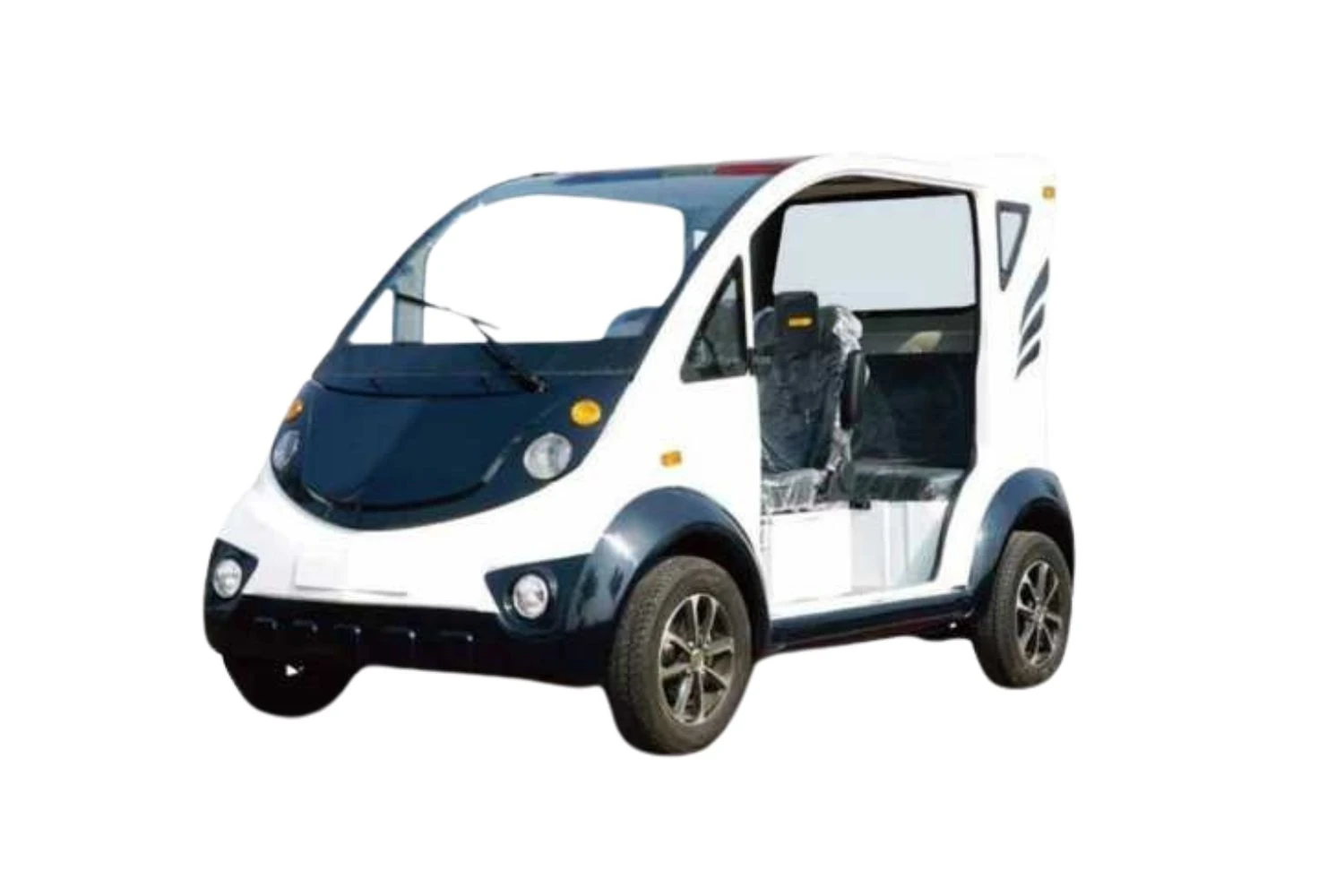

MDEV-XL105 Compact Electric Utility Vehicle

Name: MDEV-XL105 Compact Electric Utility Vehicle
SKU: 0

MESSAGE

Our products have 3C and CE certifications.

PRODUCT DESCRIPTION

MDEV-XL105 Compact Electric Utility Vehicle

*Versatile 5-Passenger Urban Transport Solution*

1. Technical Specifications

Category	Parameter	Specification
Dimensions	Length × Width × Height	3200 × 1650 × 1900 mm
Capacity	Passenger Capacity	5persons
Performance	Max Speed	30 km/h
	Range	70-90 km
	Gradeability	≤18% slope
Maneuverability	Turning Radius	6.75 m
	Ground Clearance	200 mm
Safety	Braking Distance	6 m
Chassis	Wheelbase	2080 mm
	Front/Rear Tread	1455/1450 mm
Weight	Curb Weight	800 kg
Wheels	Tires	155/65-R13 (aluminum rim)

2. Powertrain System

Component	Specification	Feature
Motor	AC, 3.5kW (48V standard)	Optional 60V/72V upgrade
Controller	48V, 400A	High-efficiency control
Charging	Intelligent charger	8-hour full charge
Battery Options	Lead-acid/Lithium	Customizable

3. Chassis & Control

System	Specification	Advantage
Braking	Front disc + rear drum	Dual-circuit safety
Front Suspension	MacPherson independent	Comfort ride
Rear Suspension	Integral axle	Durability
Steering	Rack and pinion	Precise control

4. Features & Construction

Feature	Specification	Benefit
Dashboard	LCD instrument panel	Real-time monitoring
Lighting	LED headlights/taillights	Energy-saving
Seating	High-resilience PU leather	Commercial-grade
Body Material	Steel frame + pressed iron shell	Robust protection

Key Advantages

✔ Compact Design: 3.2m length ideal for urban spaces
✔ Strong Climbing: ≤18% gradeability outperforms competitors
✔ Quick Stopping: 6m braking distance for safety
✔ Customizable: Voltage options (48V/60V/72V) available

Perfect For:

Gated community patrol
Campus security vehicles
Narrow urban alley navigation

Available in multiple colors with optional cargo configurations.

Technical Notes:
• The 2080mm wheelbase provides optimal stability
• Pressed iron body offers superior dent resistance
• 155/65-R13 tires balance comfort and efficiency
