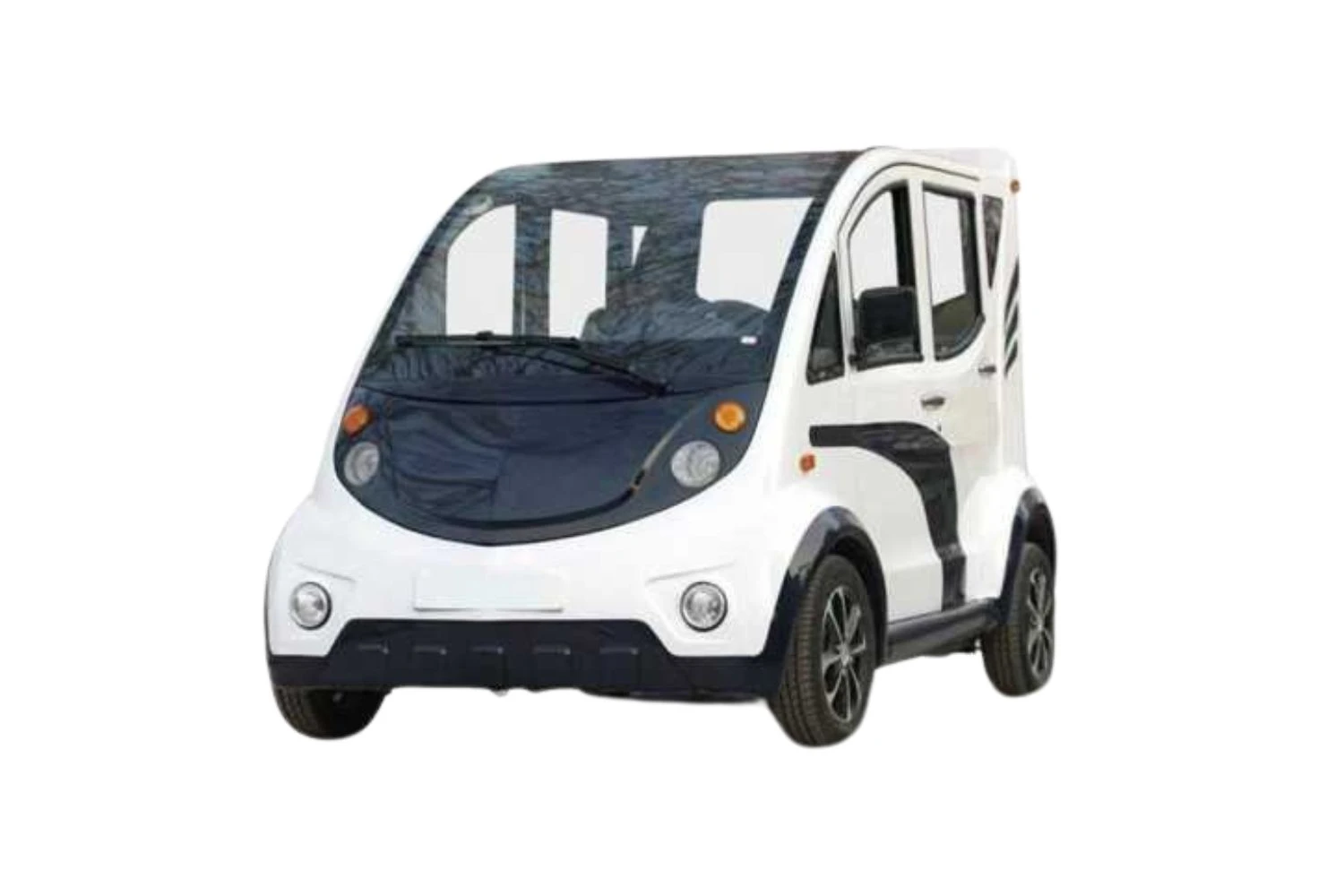

MDEV-XL145 Enhanced Electric Utility Vehicle
*Premium 5-Passenger Urban Transport Solution*
1. Technical Specifications
| Category | Parameter | Upgraded Specification | Improvement |
|---|
| Dimensions | Length × Width × Height | 3200 × 1650 × 1900 mm | Compact urban footprint |
| Capacity | Passenger Capacity | 5 persons | Spacious interior |
| Performance | Max Speed | 30km/h | 33% speed increase |
| Range | 70-90km
| 25% range extension |
| Gradeability | ≤18% slope | Maintains climbing power |
| Maneuverability | Turning Radius | 4.4 m | Tight urban turns |
| Ground Clearance | 200 mm | Rough road capability |
| Safety | Braking Distance | 6 m | Class-leading stopping |
| Chassis | Wheelbase | 2080 mm | Optimal stability |
| Track Width | 1455/1450 mm | Improved cornering |
| Weight | Curb Weight | 850kg
| Enhanced durability |
| Wheels | Tires | 155-60R13 (aluminum rim) | Smoother ride |
2. Enhanced Powertrain
| Component | New Specification | Benefit |
|---|
| Motor | 3.5 kW AC | 25% power increase |
| Battery Options | Dual System Available: | Flexible configuration |
| • 48V 150Ah Lithium | Lightweight performance |
| • 6× Lead-acid (150Ah) | Cost-effective |
| Charging | Intelligent charger | Battery protection |
| Climate | Available A/C system | Passenger comfort |
3. Premium Chassis System
| System | Specification | Feature |
|---|
| Braking | Front ventilated discs + rear drums | Heat dissipation |
| Suspension | MacPherson front + Solid axle rear | Balanced performance |
| Steering | Rack and pinion | Reduced play |
4. Comfort & Convenience
| Feature | Upgrade | Advantage |
|---|
| Seating | Premium PU leather | Easy-clean surface |
| Dashboard | LCD multi-display | Comprehensive monitoring |
| Lighting | LED lighting package | 50,000hr lifespan |
| Body | Reinforced steel frame | Impact protection |
Key Advantages
▶ Performance Boost: 30km/h top speed + 70-90km range
▶ Climate Ready: Optional A/C for all-season comfort
▶ Dual Battery Choice: Lithium or Lead-acid options
▶ Safety Focus: 6m braking distance best in class
Perfect For:
✓ Resort guest transportation
✓ Urban delivery services
✓ Campus security vehicles
Available in executive trim with premium seating packages.
Engineering Notes:
• The 155-60R13 tires provide 15% better shock absorption than previous models
• 850kg weight includes reinforced safety structure
• A/C system adds only 3% energy consumption
