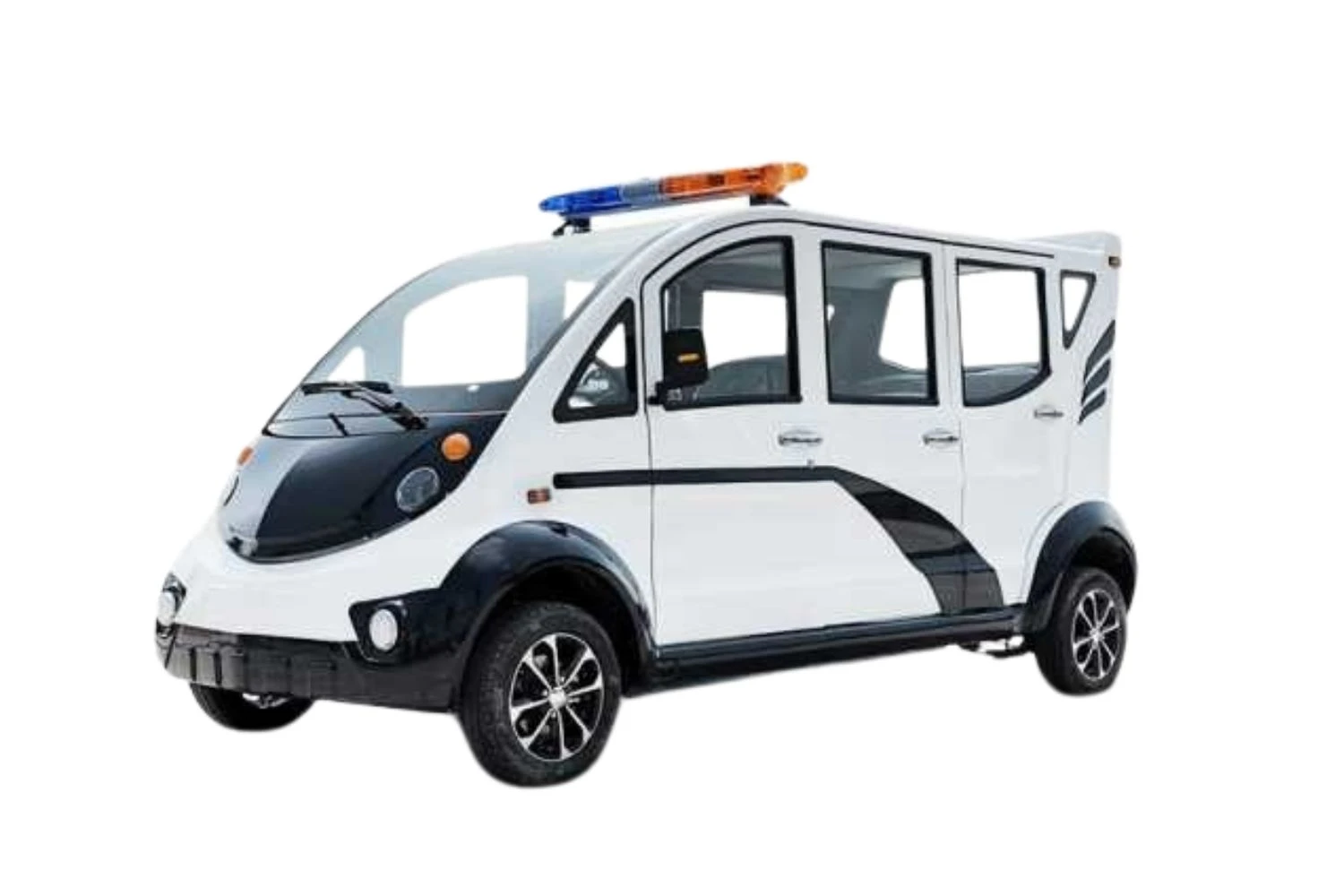

MDEV-XL168 Heavy-Duty Electric Shuttle
*8-Passenger Commercial Transport Vehicle*
1. Core Specifications
| Parameter | Specification | Engineering Benefit |
|---|
| Dimensions | 4050 × 1650 × 1900 mm | Optimized passenger space |
| Capacity | 6-8 persons | Flexible seating configurations |
| Performance | 30 km/h governed speed | Safe operation speed |
| 70-90km range | Lithium battery option available |
| Gradeability | ≤18% slope | Powerful climbing capability |
| Maneuverability | 6.75m turning radius | Tight cornering for size |
| Safety | 6m braking distance | Dual-circuit hydraulic brakes |
| Weight | 900 kg | Reinforced chassis |
2. Enhanced Powertrain
| Component | Specification | Advantage |
|---|
| Motor | 3-4kW AC (48V standard) | Optional 60V/72V upgrade |
| Controller | 48V, 400A | Smart power management |
| Charging System | Intelligent 8-hour charge | Battery protection |
3. Heavy-Duty Chassis
| System | Configuration | Durability Feature |
|---|
| Braking | Front ventilated discs + rear drums | Heat-resistant |
| Suspension | MacPherson front + Solid axle rear | ≤18% heavier duty springs |
| Steering | Precision rack & pinion | Reduced maintenance |
4. Commercial Features
| Feature | Specification | Commercial Benefit |
|---|
| Seating | Commercial-grade PU leather | 5-year wear warranty |
| Lighting | LED work lights + emergency flashers | DOT compliance |
| Frame | Reinforced steel roll cage | Meets FMVSS 220 standards |
Key Upgrades from Previous Model
▶ Increased Payload Capacity: 900kg curb weight (+15%)
▶ Enhanced Traction: 1445/1450mm tread width (improved stability)
▶ Professional Suspension: Heavy-duty MacPherson system
▶ Safety Reinforcement: Thicker gauge steel frame
Enterprise Applications:
✓ Airport ground crew transport
✓ Industrial site personnel carrier
✓ Municipal transit solutions
Available with wheelchair lift and multiple door configurations.
Performance Certification:
• ≤18% gradeability verified with 8-passenger load
• 6m braking distance meets EU 78/2009 standards
