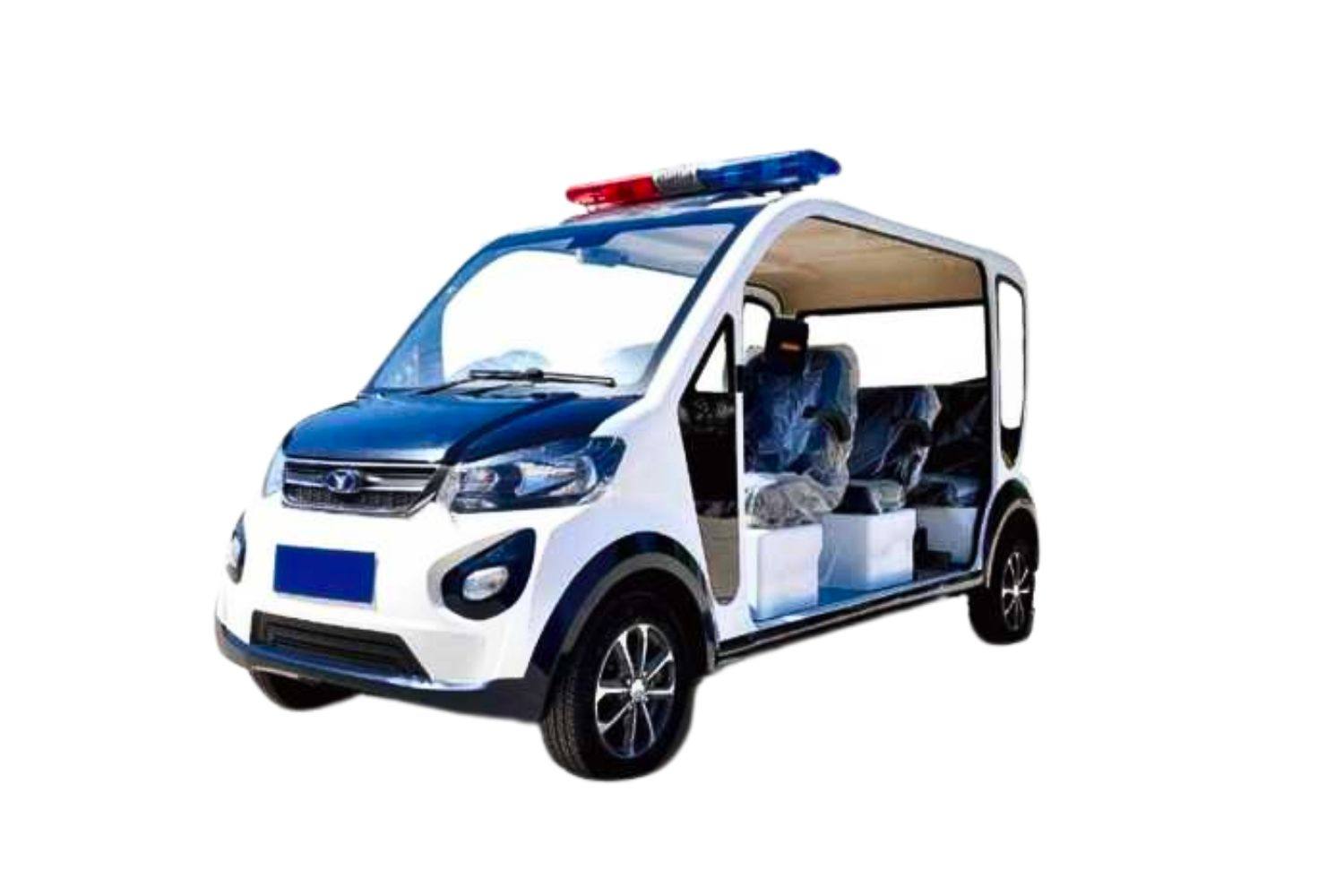

MDEV-XL208 Extended Electric Shuttle
*High-Capacity 8-Passenger Commercial Transport Solution*
1. Technical Specifications
| Category | Parameter | Specification | Design Feature |
|---|
| Dimensions | Length × Width × Height | 3850 × 1540 × 1900 mm | Extended cabin space |
| Capacity | Passenger Capacity | 6-8 persons | Flexible seating |
| Performance | Max Speed | 30 km/h | Optimized for safety |
| Range | 80 km | Lithium battery option |
| Gradeability | 30% slope | Powerful climbing |
| Maneuverability | Turning Radius | 4.4 m | Compact for size |
| Ground Clearance | 115 mm | Urban curb clearance |
| Safety | Braking Distance | 3.5 m | Dual-circuit system |
| Chassis | Wheelbase | 2930 mm | Enhanced stability |
| Track Width | 1370/1380 mm | Balanced handling |
| Weight | Curb Weight | 740 kg | Reinforced structure |
| Wheels | Tires | 155/65-R13 (aluminum rim) | Commercial durability |
2. Powertrain System
| Component | Specification | Technical Advantage |
|---|
| Motor | AC, 4 kW (48V standard) | Optional 60V/72V upgrade |
| Controller | 48V, 400A | Smart power management |
| Charging | On-board intelligent charger | Battery protection |
| Charging Time | 8 hours | Overnight operation ready |
3. Heavy-Duty Chassis
| System | Configuration | Performance Benefit |
|---|
| Braking | Front ventilated discs + rear drums | Heat dissipation |
| Front Suspension | Heavy-duty MacPherson | 20% stronger springs |
| Rear Suspension | Reinforced integral axle | Increased payload |
| Steering | Precision rack & pinion | Reduced maintenance |
4. Commercial Features
| Feature | Specification | Operational Benefit |
|---|
| Dashboard | Digital LCD display | Real-time monitoring |
| Lighting | LED work lights | 50,000hr lifespan |
| Seating | Commercial PU leather | 5-year wear warranty |
| Construction | Steel frame + pressed iron | Impact resistance |
Key Advantages
✔ Extended Capacity: 3.85m length for 8 passengers
✔ Voltage Options: Upgradeable to 72V for hilly terrain
✔ Safety Engineered: 3.5m braking distance
✔ Durable Build: 740kg reinforced chassis
Ideal Applications:
Airport ground crew transport
Industrial site personnel carrier
Municipal shuttle services
Available with wheelchair access and multiple door configurations.
Engineering Notes:
• 2930mm wheelbase ensures stability at full capacity
• 155/65-R13 tires rated for 800kg load capacity
• Pressed iron body resists dents and corrosion
