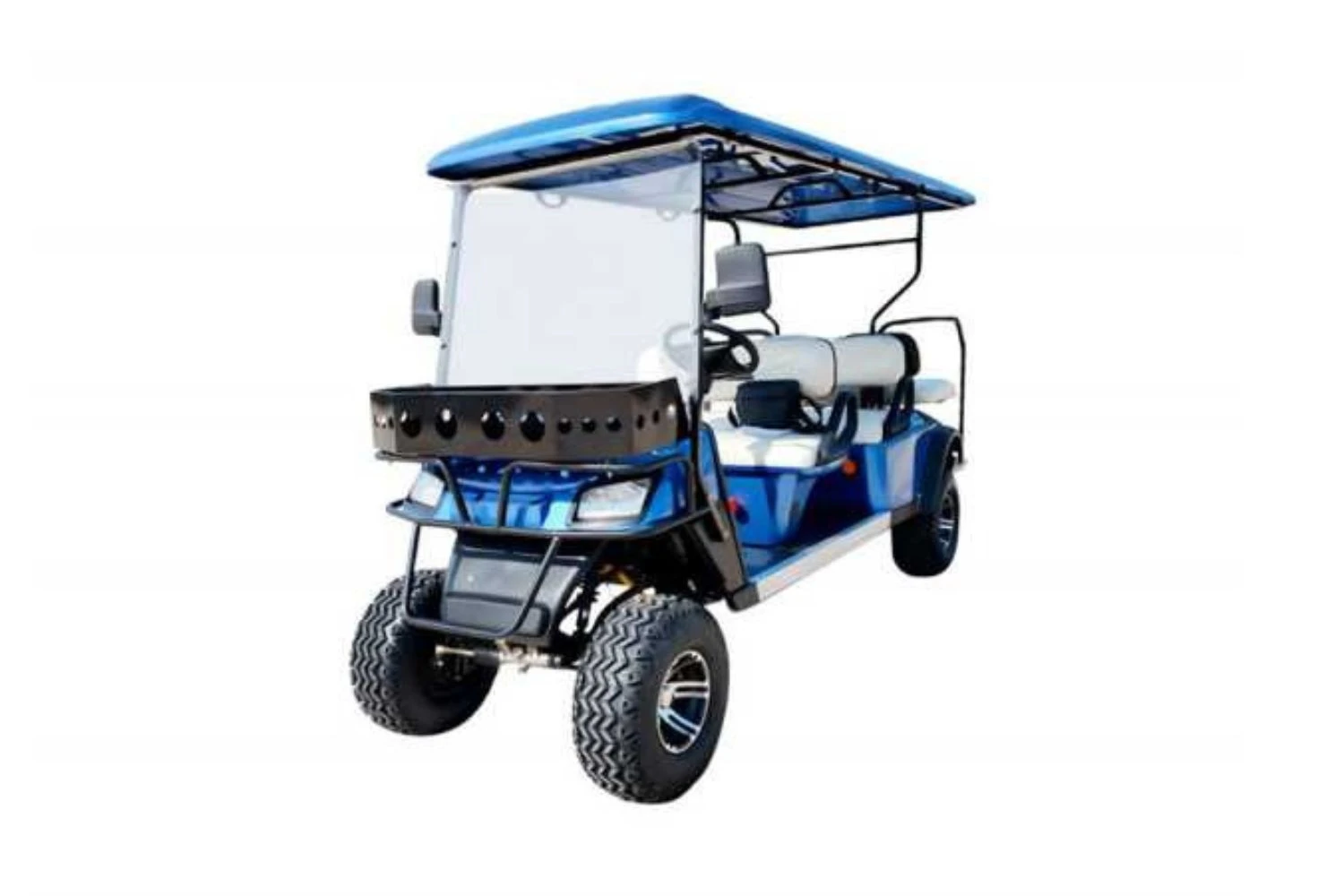

MDEV-GB42 Electric Utility Vehicle Technical Specifications
1. General Parameters
| Parameter | Specification |
|---|
| Dimensions | 4020× 1300 × 1950 mm |
| Passenger Capacity | 6 persons |
| Max Speed | 40 km/h (25 mph) |
| Range | 80–100 km |
| Gradeability | 25% slope |
| Turning Radius | 6 m |
| Ground Clearance | 400 mm |
| Braking Distance | 6 m |
| Wheelbase | 3226 mm |
| Front/Rear Tread | 870 mm |
| Weight | 600 kg |
| Tires | 205/50-10 road tires (iron rim) |
2. Powertrain System
| Component | Specification |
|---|
| Motor | AC, 60V/48V, 3–5 kW |
| Controller | 60V, 350A |
| Battery | Lead-acid, 100Ah (12V×5) |
| Charger | 85V–270V, Intelligent high-frequency |
| Charging Time | 6–8 hours |
3. Chassis & Control
| System | Specification |
|---|
| Braking | Self-adjusting rear drum brake + parking lock |
| Front Suspension | Leaf spring |
| Rear Suspension | Integral rear axle |
| Steering | Rack & pinion |
4. Features
| Category | Specification |
|---|
| Dashboard | Electricity meter, F/R switch |
| Seating | PU leather + high-density foam |
| Body Material | Steel frame + ABS plastic |
Key Highlights
✔ High Capacity: 6-passenger configuration
✔ All-Terrain Tires: 205/50-10 road tires（iron rim）
✔ Dual-Voltage Motor: 48V/60V compatibility
✔ Robust Chassis: Leaf spring front suspension
