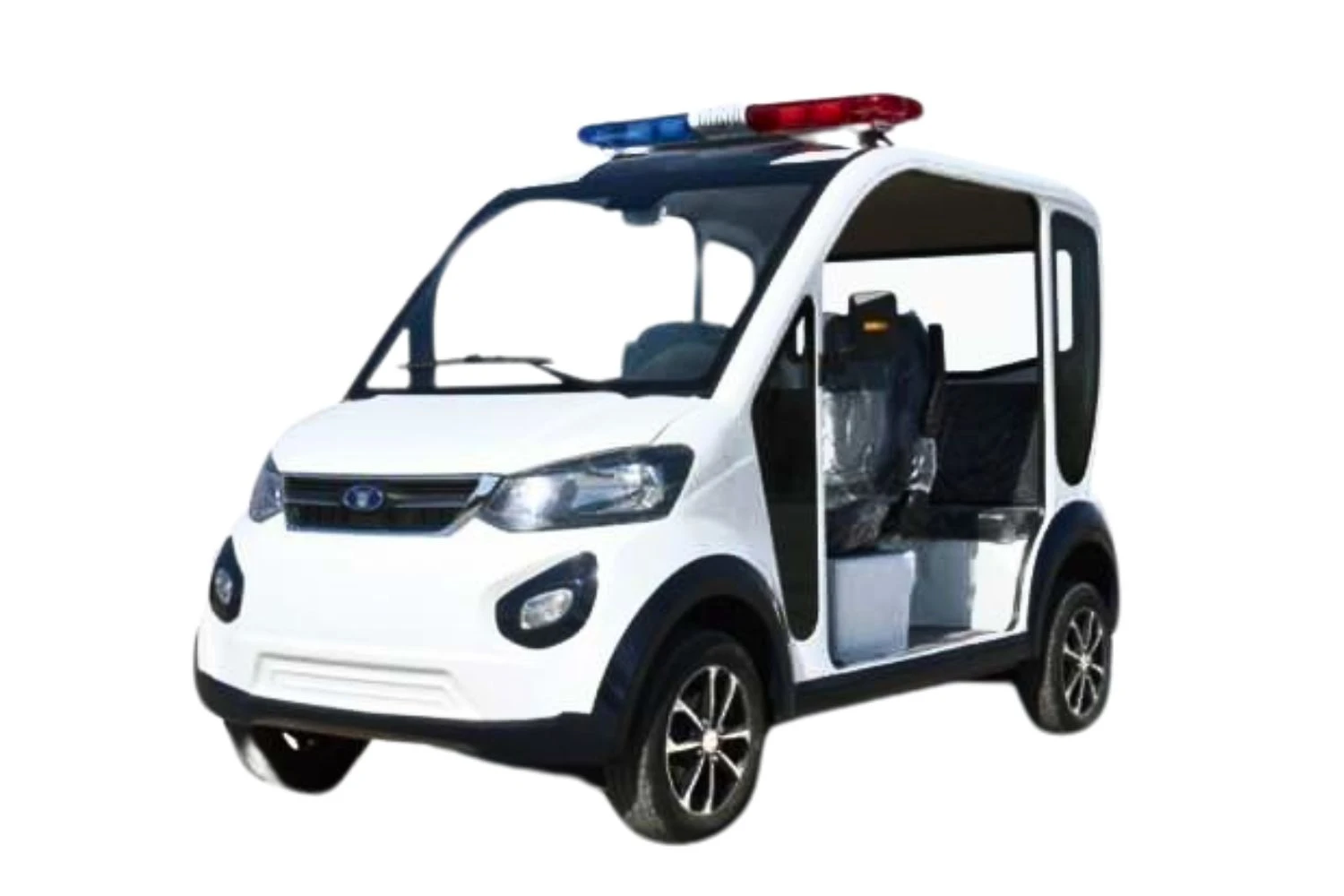

MDEV-XL205 Compact Electric Utility Vehicle
*Versatile 5-Passenger Urban Transport Solution*
1. Technical Specifications
| Category | Parameter | Specification | Design Advantage |
|---|
| Dimensions | Length × Width × Height | 3160 × 1540 × 2060 mm | Compact urban footprint |
| Capacity | Passenger Capacity | 4-5 persons | Spacious interior |
| Performance | Max Speed | 30 km/h | Optimized for safety |
| Range | 80 km | Sufficient for daily use |
| Gradeability | 30% slope | Strong climbing ability |
| Maneuverability | Turning Radius | 4.4 m | Excellent urban agility |
| Ground Clearance | 115 mm |
|
| Safety | Braking Distance | 3.5 m | Reliable stopping |
| Chassis | Wheelbase | 2180 mm | Stable handling |
| Track Width | 1370/1380 mm | Balanced weight distribution |
| Weight | Curb Weight | 583 kg | Lightweight efficiency |
| Wheels | Tires | 155/65-R13 (aluminum rim) | Low rolling resistance |
2. Powertrain System
| Component | Specification | Feature Benefit |
|---|
| Motor | AC, 4 kW (48V standard) | Optional 60V/72V upgrade available |
| Controller | 48V, 400A | Precision current control |
| Charging | On-board intelligent charger | Battery protection |
| Charging Time | 8 hours | Overnight operation ready |
3. Chassis & Control
| System | Configuration | Performance Benefit |
|---|
| Braking | Front disc + rear drum | Dual-circuit hydraulic safety |
| Front Suspension | MacPherson independent | Comfort-focused |
| Rear Suspension | Integral axle | Durability |
| Steering | Rack and pinion | Precise control |
4. Features & Construction
| Feature | Specification | User Advantage |
|---|
| Dashboard | Digital LCD display | Comprehensive monitoring |
| Lighting | LED headlights/taillights | Energy-efficient visibility |
| Seating | High-resilience PU leather | Commercial durability |
| Body Material | Steel frame + pressed iron | Impact protection |
Key Advantages
✔ Urban Agility: 3.16m length with 4.4m turning radius
✔ Power Options: Voltage upgradeable to 72V
✔ Safety Focus: 3.5m braking distance
✔ Lightweight Design: 583kg for energy efficiency
Ideal For:
Available in multiple colors with optional cargo configurations.
Technical Notes:
• 2180mm wheelbase ensures stability during turns
• 155/65-R13 tires provide optimal load rating
• Lightweight 583kg design maximizes range
