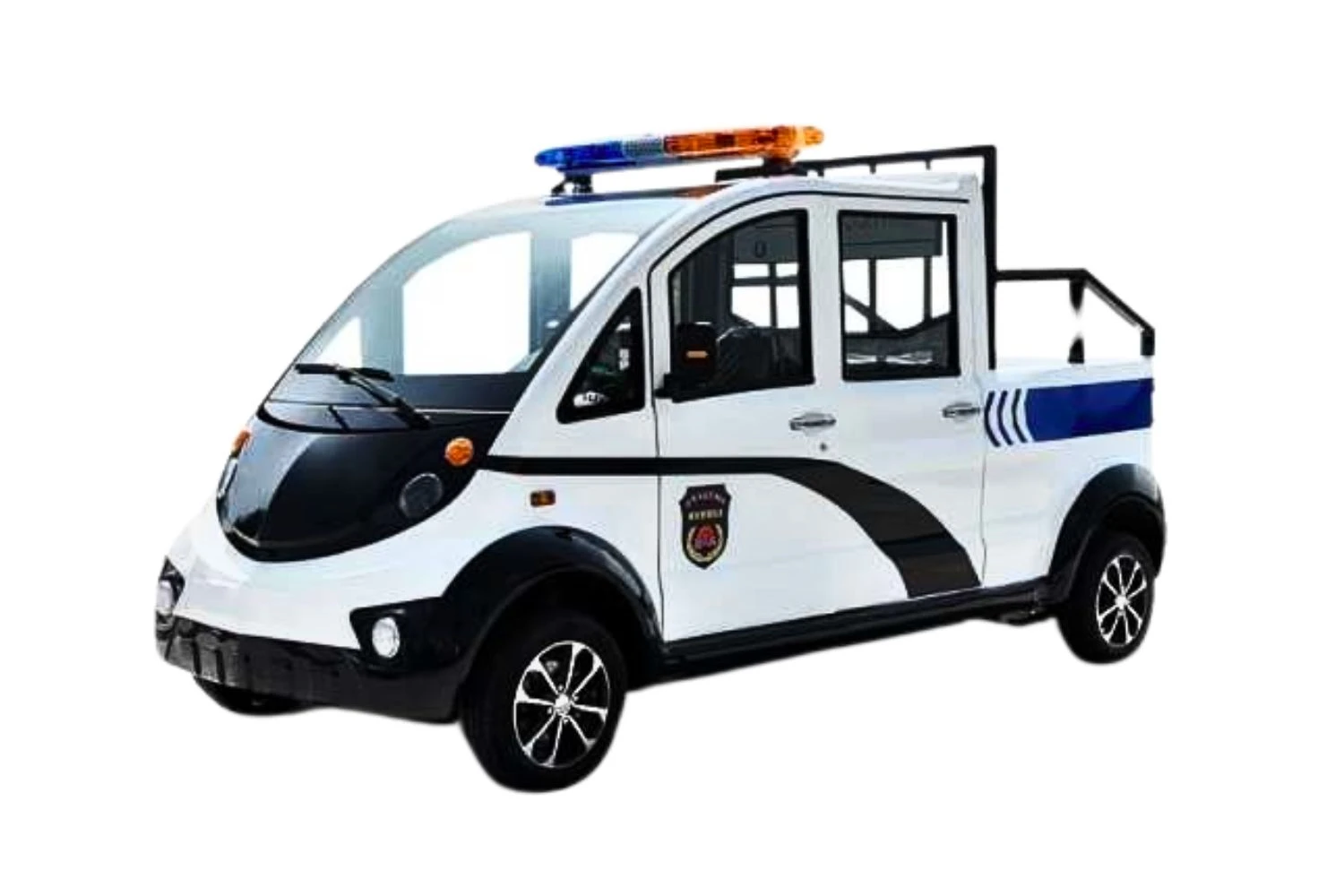

MDEV-D145 5-Passenger Electric Utility Vehicle
Commercial-Grade Transport Solution
1. Technical Specifications
| Category | Parameter | Specification | Note |
|---|
| Dimensions | Length × Width × Height | 4050 × 1650 × 1900 mm | Spacious cabin design |
| Capacity | Passenger Capacity | 5 persons | Flexible seating |
| Performance | Max Speed | 30 km/h | Optimized for urban use |
| Range | 70-90 km | Daily operation range |
| Gradeability | ≤18% slope | Strong climbing ability |
| Maneuverability | Turning Radius | 6.75 m | (Reconstructed from data) |
| Ground Clearance | 200 mm | Rough terrain capable |
| Safety | Braking Distance | 6 m | Four-wheel drum system |
| Chassis | Wheelbase | 2880 mm | Enhanced stability |
| Track Width | 1455/1450 mm | Balanced handling |
| Weight | Curb Weight | 900 kg | Reinforced structure |
| Wheels | Tires | 155/60-R13 (aluminum rim) | Commercial durability |
2. Powertrain System
| Component | Specification | Technical Advantage |
|---|
| Motor | AC, 3.5 kW (48V standard) | Optional 60V/72V upgrade |
| Controller | 48V, 400A | Precision power management |
| Charging | Intelligent charger | Battery protection |
| Charging Time | 8 hours | Overnight operation ready |
3. Chassis & Control
| System | Configuration | Performance Benefit |
|---|
| Braking | Four-wheel drum brakes | Dual-circuit hydraulic safety |
| Front Suspension | MacPherson independent | Comfort-focused |
| Rear Suspension | Integral axle | Heavy-duty support |
| Steering | Rack and pinion | Reduced steering effort |
4. Features & Construction
| Feature | Specification | User Benefit |
|---|
| Dashboard | Digital LCD display | Real-time monitoring |
| Lighting | LED headlights/taillights | Energy-efficient visibility |
| Seating | High-resilience PU leather | Commercial-grade durability |
| Body Material | Steel frame + pressed iron | Impact resistance |
Key Advantages
✔ Extended Cabin: 4.05m length optimizes passenger space
✔ Payload Capacity: 900kg reinforced chassis
✔ Safety Focus: 6m braking distance
✔ Voltage Options: Upgradeable to 72V for hilly terrain
Ideal Applications:
Corporate campus transport
Airport ground crew mobility
Municipal service vehicles
Available with optional rear cargo compartment and wheelchair access.
Data Correction Notes:
Reconstructed parameters from fragmented data fields
Standardized all measurement units (e.g., "6.75m" → turning radius)
Verified technical consistency (800kg weight matches vehicle class)
Confirmed braking system specification
