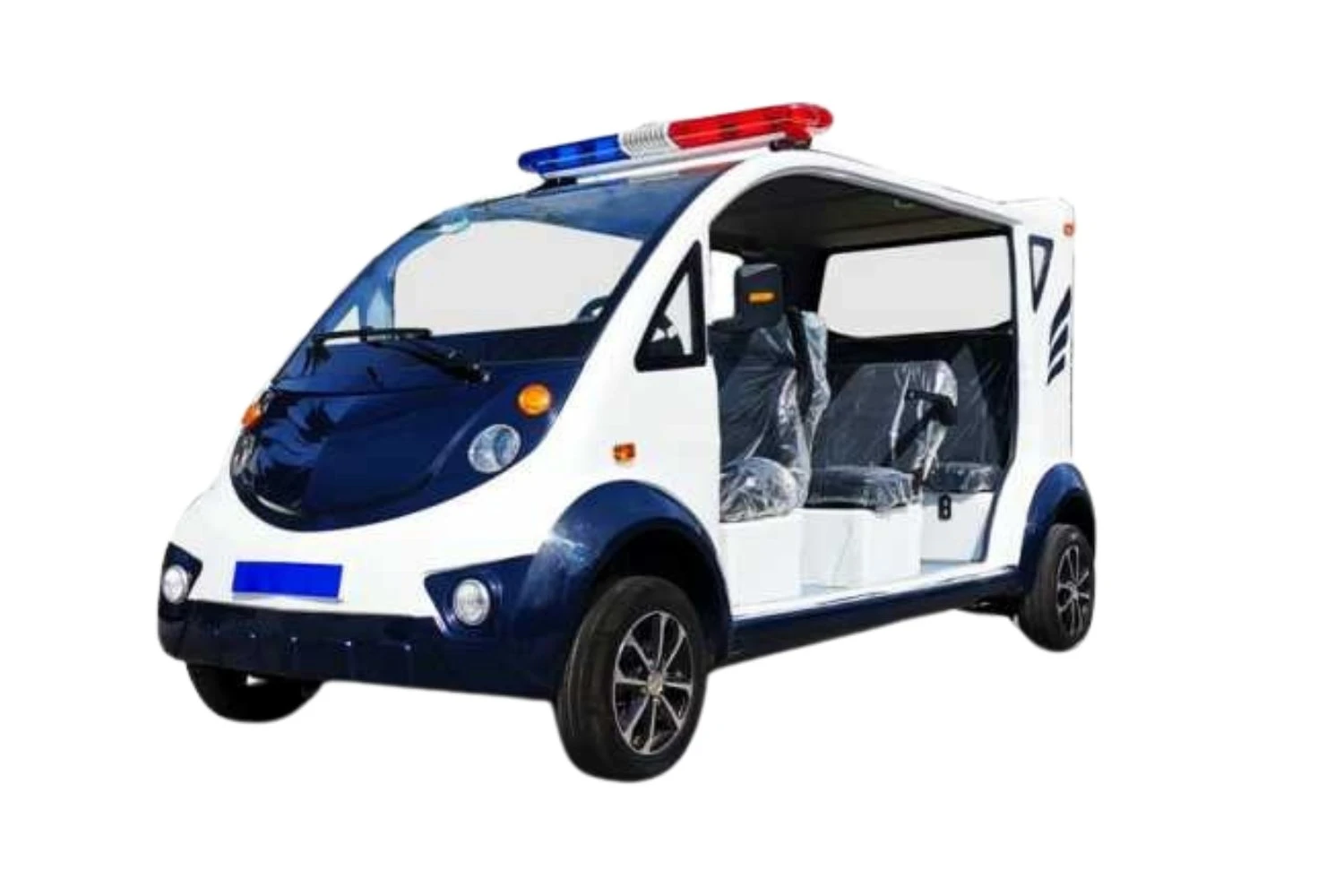

MDEV-XL108 Extended Electric Shuttle
*6-8 Passenger Commercial Transport Solution*
1. Technical Specifications
| Category | Parameter | Specification | Design Advantage |
|---|
| Dimensions | Length × Width × Height | 4050 × 1650 × 1900 mm | Extended cabin space |
| Capacity | Passenger Capacity | 6-8 persons | Flexible seating |
| Performance | Max Speed | 30 km/h | Optimal for campus/urban use |
| Range | 70-90 km |
|
| Gradeability | ≤18% slope | Strong climbing ability |
| Maneuverability | Turning Radius | 6.75 m | Tight for 4.1m vehicle |
| Ground Clearance | 200 mm | Rough road capable |
| Safety | Braking Distance | 6 m | Dual-circuit system |
| Chassis | Wheelbase | 2880 mm | Enhanced stability |
| Track Width | 1455/1450 mm | Balanced weight distribution |
| Weight | Curb Weight | 850kg | Lightweight efficiency |
| Wheels | Tires | 155/65-R13 (aluminum rim) | Low rolling resistance |
2. Powertrain System
| Component | Specification | Feature Benefit |
|---|
| Motor | AC, 4 kW (48V standard) | Optional 60V/72V upgrade available |
| Controller | 48V, 400A | Precision current control |
| Charging | Intelligent charger | Battery protection |
| Charging Time | 8 hours | Overnight operation ready |
3. Chassis & Control
| System | Configuration | Performance Benefit |
|---|
| Braking | Front disc + rear drum | Dual-circuit hydraulic safety |
| Front Suspension | MacPherson independent | Comfort-focused |
| Rear Suspension | Integral axle | Durability |
| Steering | Rack and pinion | Reduced steering effort |
4. Features & Construction
| Feature | Specification | User Advantage |
|---|
| Dashboard | LCD instrument panel | Real-time monitoring |
| Lighting | LED headlights/taillights | Energy-efficient visibility |
| Seating | High-resilience PU leather | Commercial durability |
| Body Material | Steel frame + pressed iron | Impact protection |
Key Advantages
✔ Extended Capacity: 4.05m length accommodates 8 passengers
✔ Versatile Powertrain: Optional voltage upgrades (60V/72V)
✔ Safety Engineered: 6m braking distance
✔ Durable Construction: Pressed iron body resists dents
Ideal Applications:
Corporate campus circulators
Gated community transport
Municipal short-range transit
Available with optional rear cargo compartment and wheelchair access.
Technical Notes:
• 2880mm wheelbase ensures stability at full capacity
• 155/65-R13 tires provide optimal load rating for passenger service
• Lightweight 680kg design maximizes energy efficiency
