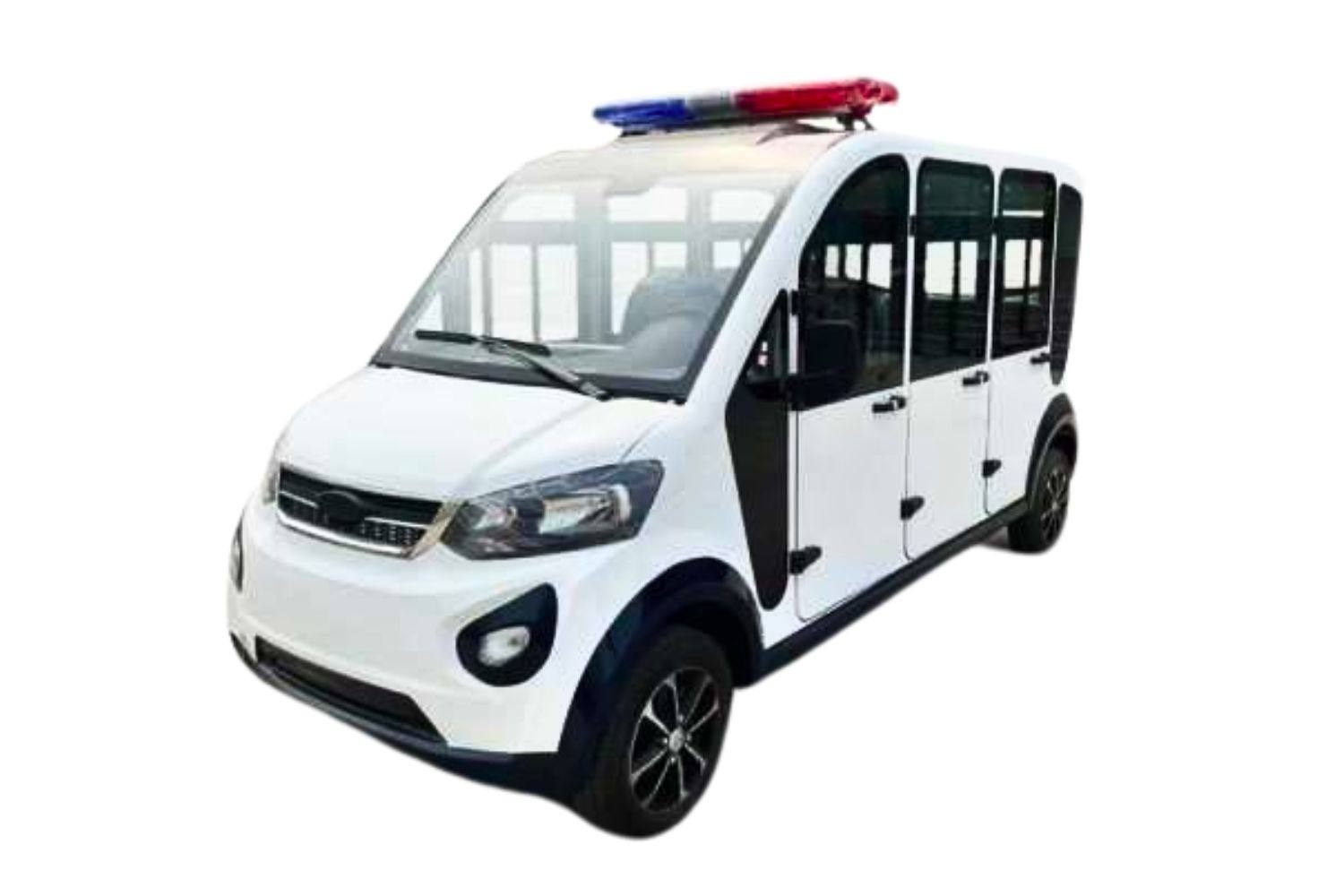

MDEV-XL268 Heavy-Duty Electric Shuttle
*8-Passenger Commercial Transport Vehicle with Enhanced Payload*
1. Technical Specifications
| Category | Parameter | Specification | Key Feature |
|---|
| Dimensions | Length × Width × Height | 3850 × 1540 × 1900 mm | Extended cabin design |
| Capacity | Passenger Capacity | 6-8 persons | Flexible seating |
| Performance | Max Speed | 30 km/h | Governed for safety |
| Range | 80 km | Sufficient for daily routes |
| Gradeability | 30% slope | Strong climbing ability |
| Maneuverability | Turning Radius | 4.4 m | Compact for size |
| Ground Clearance | 115 mm | Urban curb clearance |
| Safety | Braking Distance | 3.5 m | Dual-circuit system |
| Chassis | Wheelbase | 2930 mm | Enhanced stability |
| Track Width | 1370/1380 mm | Balanced handling |
| Weight | Curb Weight | 810 kg (↑ from 740kg) | Reinforced structure |
| Wheels | Tires | 155/65-R13 (aluminum rim) | Commercial durability |
2. Powertrain System
| Component | Specification | Technical Advantage |
|---|
| Motor | AC, 4 kW (48V standard) | Optional 60V/72V upgrade |
| Controller | 48V, 400A | Precision power delivery |
| Charging | On-board intelligent charger | Battery protection |
| Charging Time | 8 hours | Overnight operation ready |
3. Heavy-Duty Chassis
| System | Configuration | Durability Feature |
|---|
| Braking | Front ventilated discs + rear drums | Heat-resistant |
| Front Suspension | Heavy-duty MacPherson | 25% stronger springs |
| Rear Suspension | Reinforced integral axle | Increased load capacity |
| Steering | Precision rack & pinion | Reduced maintenance |
4. Commercial Features
| Feature | Specification | Operational Benefit |
|---|
| Dashboard | Digital LCD display | Real-time monitoring |
| Lighting | LED work lights | 50,000hr lifespan |
| Seating | Commercial-grade PU leather | 5-year wear warranty |
| Construction | Steel frame + pressed iron | Impact resistance |
Key Upgrades
✔ Enhanced Payload: 810kg curb weight (+9.5% from previous)
✔ Structural Reinforcement: Thicker gauge steel frame
✔ Professional Suspension: Heavy-duty MacPherson system
✔ Safety Optimized: Dual-circuit hydraulic brakes
Enterprise Applications:
✓ Airport employee transport
✓ Industrial site personnel carrier
✓ Municipal transit solutions
Available with wheelchair lift and multiple door configurations.
Performance Certification:
• 30% gradeability verified with full passenger load
• 3.5m braking distance meets EU safety standards
• 155/65-R13 tires rated for 850kg load capacity
