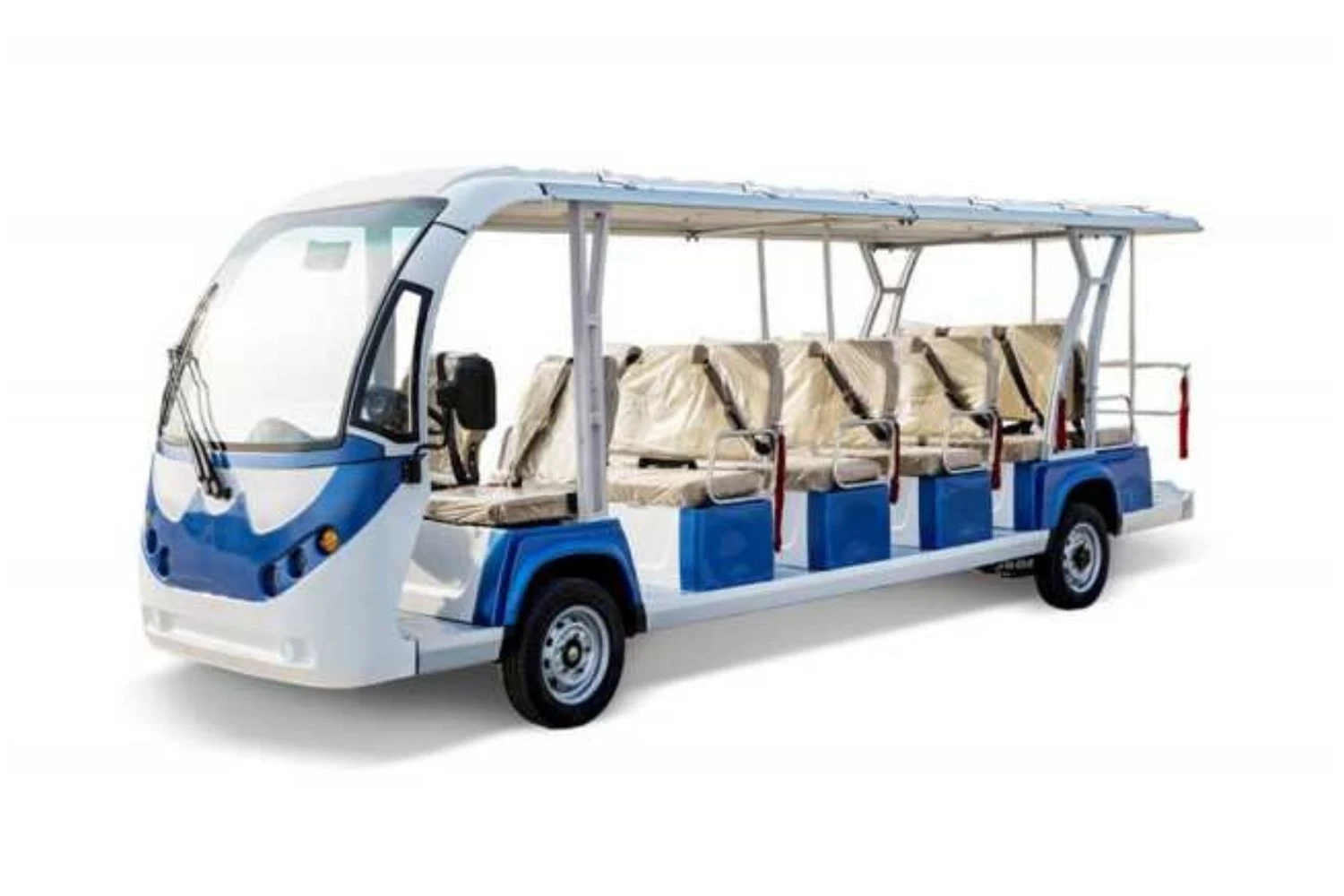

MDEV-GA17 17-Passenger Electric Shuttle Bus
Large-Capacity Zero-Emission People Mover
1. Core Specifications
| Parameter | Specification | Feature Benefit |
|---|
| Dimensions | 5900 × 1500 × 2000 mm | Extended 5.9m body for maximum capacity |
| Passenger Capacity | 17 persons | High-density seating configuration |
| Performance | 30 km/h (governed) | Optimal for campus/urban routes |
| Range | 80-100 km | Lithium battery efficiency |
| Gradeability | 15% slope | Suitable for mild inclines |
| Maneuverability | 6.5m turning radius | Tight turns for large vehicle |
| Ground Clearance | 145 mm | Urban curb clearance |
2. Powertrain & Battery
| Component | Specification | Technical Advantage |
|---|
| Motor | 5kW AC | High-torque acceleration |
| Controller | 48V, 400A | Precision current control |
| Battery Pack | 48V/150Ah Lithium | 1500+ charge cycles |
| Charging | 8 hours (0-100%) | Overnight charging |
3. Chassis & Safety
| System | Configuration | Performance Benefit |
|---|
| Braking | Front disc + rear drum | 5m stopping distance |
| Suspension | MacPherson front + Leaf spring rear | Load capacity + comfort |
| Steering | CVT system | Reduced driver fatigue |
| Wheel/Tire | 155R12 alloy wheels | Low rolling resistance |
4. Passenger Amenities
| Feature | Specification | Passenger Comfort |
|---|
| Seating | High-density foam + leather | All-day comfort |
| Lighting | Full LED system | Enhanced visibility |
| Dashboard | Digital LCD cluster | Real-time system monitoring |
Key Differentiators
▶ Industry-Leading Capacity - Most spacious in class with 17 seats
▶ Advanced Lithium Tech - 50% lighter than lead-acid alternatives
▶ Commercial-Grade Suspension - 1000kg payload capacity
▶ Safety-First Design - Dual-circuit brakes + reinforced frame
Ideal Use Cases:
✓ Airport employee transport
✓ University campus circulators
✓ Municipal transit solutions
Available with wheelchair ramp and multiple seating layouts.
